IAI – The largest manufacturer of 3A certified tanks in Canada.

3A Certifications for small and large tanks and processors

ASME High Pressure Accreditation



We can offer you a wide range of tanks according to your needs, including high pressure tanks, storage tanks, and specialized tanks certified to meet the standards that you require.

Corrosion Resistant AL6XN High-Pressure Tank

Designed for a extremely corrosive environment, as well as high pressures and temperatures, this tank is constructed with AL6XN, a super austenitic stainless steel, with contains great amounts of nickel, chromium, molybdenum, and nitrogen, giving it superior mechanical properties. Moreover, it provides the unit exceptional corrosion resistance, particularly in regards to localized corrosion by chloride pitting, crevice corrosion, intergranular corrosion, and stress corrosion craking.

Horizontal Storage Tank

Fully sanitary, designed for a variety of uses

Maturation Tank

Unit for yogourt paste with gelling agents: Available capacity: 40,000 litres Liquid loading by pump or by manhole Max. Viscosity Produced: 2,200 mPas Insulated underside, ferrule, and 100 mm glass wool dome Pendular agitation without bearings All parts in contact with the product are made in 304 stainless steel

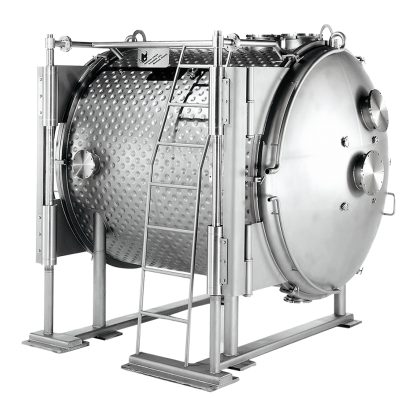

Vacuum Chamber

Plasma-based metallisation technology Equipment for scientific application designed for operation under vacuum: 110 cu. Ft. capacity Individual entry and exit doors for easy access 10 "diameter portholes Surface with high-efficiency cooling ducts High-precision internal manipulator arm Can operate in both heating or cooling modes 30 Ra interior finish

7000L Tank

3 600 Litre Biopharmaceutical Tanks

High-quality technology with overlay

Double-walled 150 000 litres Silos

Double-walled 150,000 litre capacity Maximum operating pressure of 70 psi Standard 3A sanitary NEP / Vacuum breeze Horizontal stirrer with gearmotor Temperature and pressure sensors Made of 304 stainless steel 304 with a satin finish

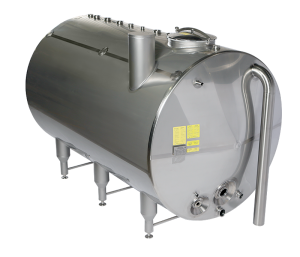

Caustic Tank

Process Tank

Unit is built and approved according to ASME div. 1; Section 8: FAT standards 90 psi steamer certificates Omega continuous-line recorder Insulated Stainless steel covering 24 Ra surface finish Nitric acid passivation

Cream Tank

Unit dimensions: 154 '' x 114 '' Manhole 16 '' x 20 '' 35 000 l atmospheric pressure Storage tank with 11ga vertical wall in 304 stainless steel QMI sampling valve Removable washing balls Large low impact surface agitator 5 hp Eurodrive dimpled membrane with a 35 Ra finish

Double-Walled Tank

90-litres preparation tank Unit Unit is built and approved according to ASME div. 1; Section 8: FAT standards, with certificatrd 90 psi steamer Omega continuous-line recorder Insulated Stainless steel covering 24 Ra surface finish Nitric acid passivation
